EMU IO Board, 10 A, with XT30 (2+2) Connector

Name: EMU IO Board, 10 A, with XT30 (2+2) Connector
Brand: EMU
SKU: EMU-IO
Price: 6.95 EUR
Availability: InStock

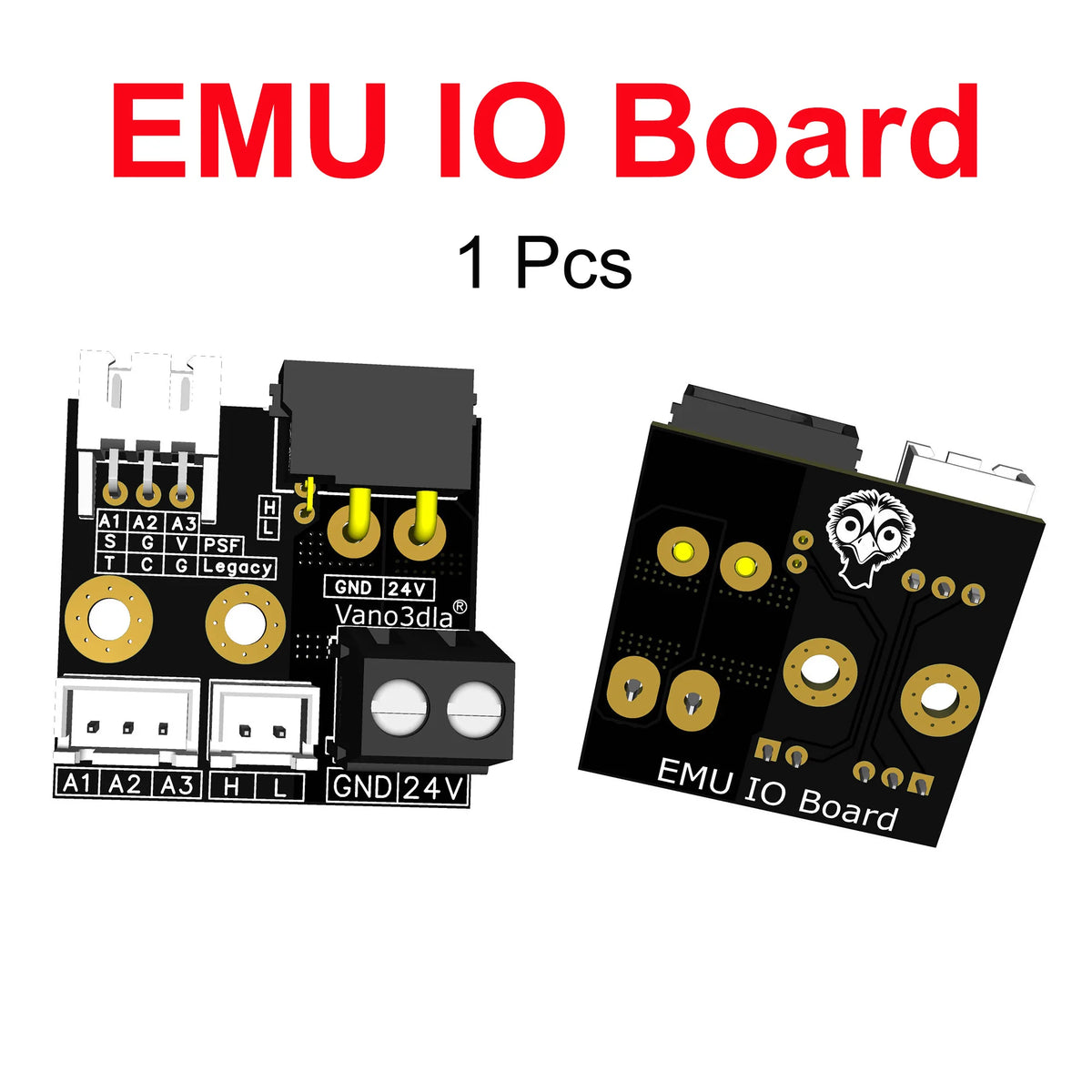

EMU IO Board, front and back, with A1–A3, H, L, GND and 24V terminals and XT30 connector

€6,95

Op voorraad

Gratis verzending boven €75 in NL · €150 in de EU & VK

Gratis afhalen bij Hemmingstraat 72 Meestal klaar binnen 2-4 dagen

Vraag over dit onderdeel? Stel hem gerust

Checked & packed by hand in the Netherlands

Genuine brand hardware, checked before it ships

Gratis verzending boven €75 in NL · €150 in de EU & VK

Details

The IO board is the central connection point in the EMU base. Power and CAN come in from the printer on an XT30 (2+2), and the board breaks them out to labelled terminals for the lanes. It has CAN and SYNC ports, plus legacy PSF/VCG pins, so you're not stacking WAGOs and splices inside the base.

On the board

Rated for 10 A
Labelled terminals: A1, A2, A3, H, L, GND, 24V
CAN and SYNC ports, legacy PSF/VCG pins
XT30 (2+2) connector included

Good to know

One per EMU.
It needs the modified STLs for the IO board version of the base.
Mounting takes 2× M3×8 BHCS and 2× M3×12 FHCS (not included).
The CAN cable to the printer isn't included.

In stock in the Netherlands, ships in 1–2 working days with no import fees.

For the EMU by DW-Tas and igiannakas. Sourced from the EMU project's licensed PCB maker. Docs: EMU on GitHub
