Monolith SLM Belt Clamp — Aluminium (Pre-Order)

−10%

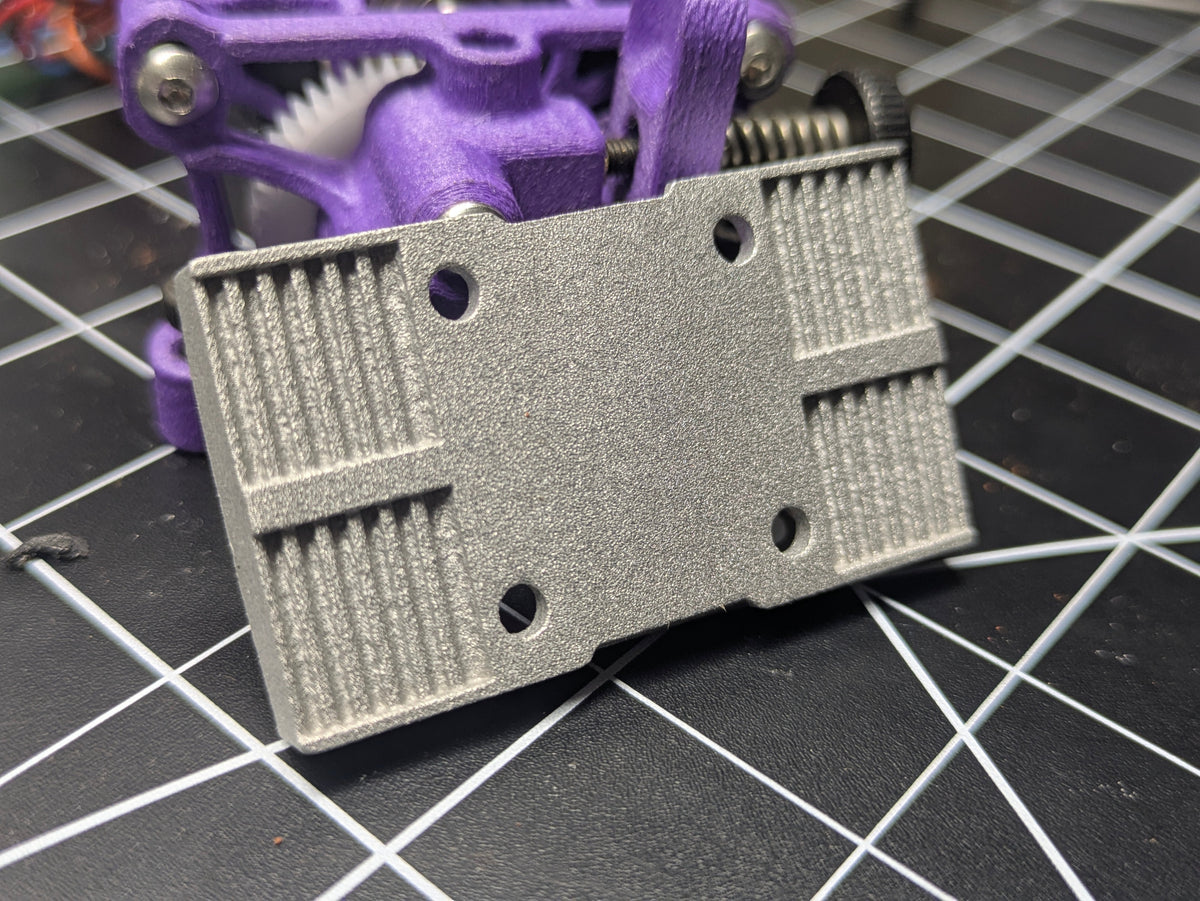

Monolith SLM aluminium belt clamp on the MGN12H carriage

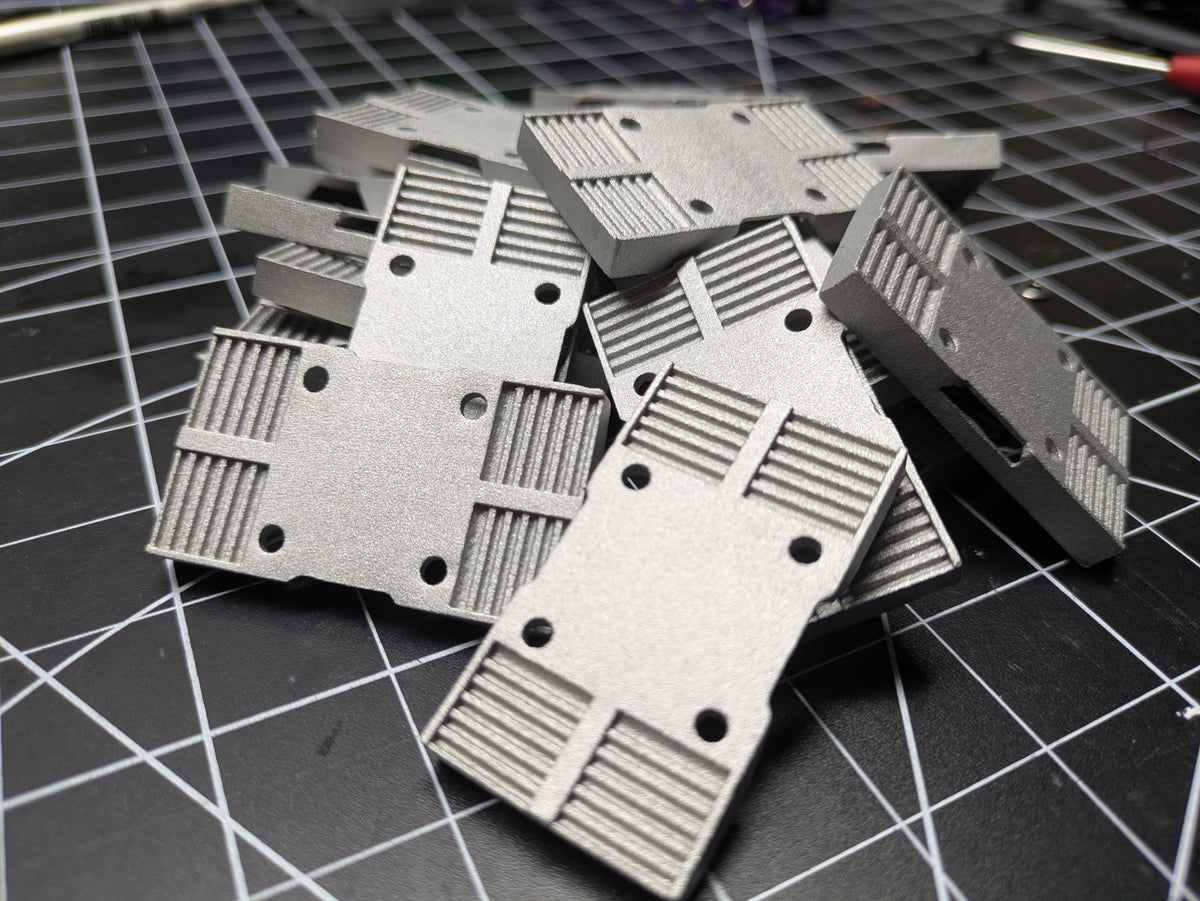

Monolith SLM aluminium belt clamp

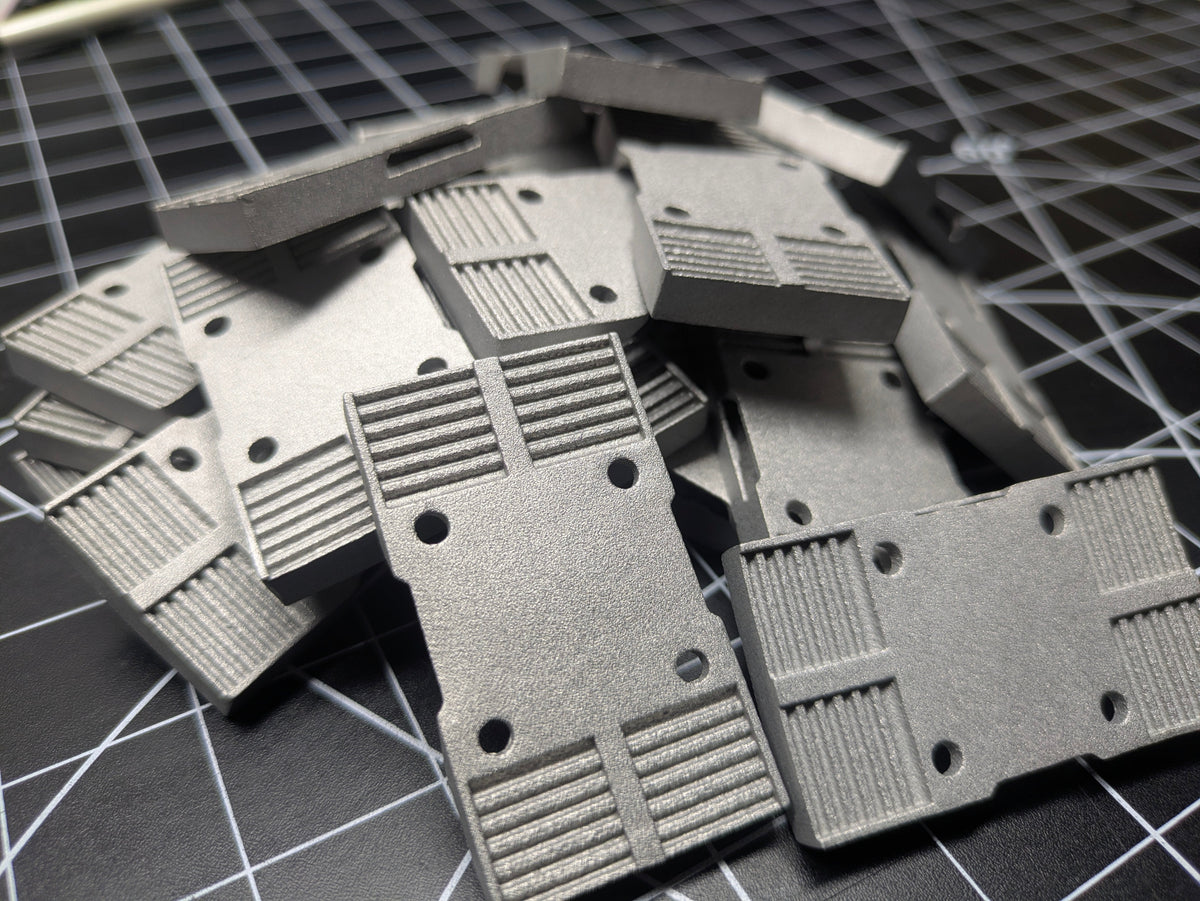

Monolith SLM aluminium belt clamp detail
€14,95€13,45 −10%

Save €1,50 (10%)

Only 5 left

Free shipping on orders over €75,00

Print queue right now: 1–2 working days

Free pickup at Hemmingstraat 72 Usually ready in 2-4 days

Question about this part? Ask me

Made, checked & packed by hand in the Netherlands
Printed parts made to order, hardware checked before it ships
Free shipping over €75 in NL · €150 in the EU

Details

Pre-order: this batch is in production. Order now to reserve yours; I ship as soon as it lands. Estimated shipping: 2–3 weeks. Limited quantity.

The single-piece belt clamp for the Monolith gantry's X MGN12H carriage, SLM-printed in aluminium at 100% infill and glass-bead blasted. Stiffer and more heat-proof than a printed clamp, and it doesn't creep under belt tension.

  • One-piece, light and compact
  • Keeps at least 6 teeth engaged, as Gates recommends
  • The loaded belt section runs dead straight, no bend-radius violation
  • Fits the standard X travels: 250, 300 and 350 mm
  • Takes belts up to 12 mm wide
  • Clips on without screws until the toolhead goes on; two partly tightened screws let you pull out all the slack before tensioning

About SLM parts: holes are not tapped or reamed, and small cosmetic marks are normal; function is not affected.

Open-source design from the Monolith gantry project. Belt and screws not included.
