E3D Revo PZ Probe Voron Coldside — Nozzle-Touch Bed Levelling for Stealthburner

Details

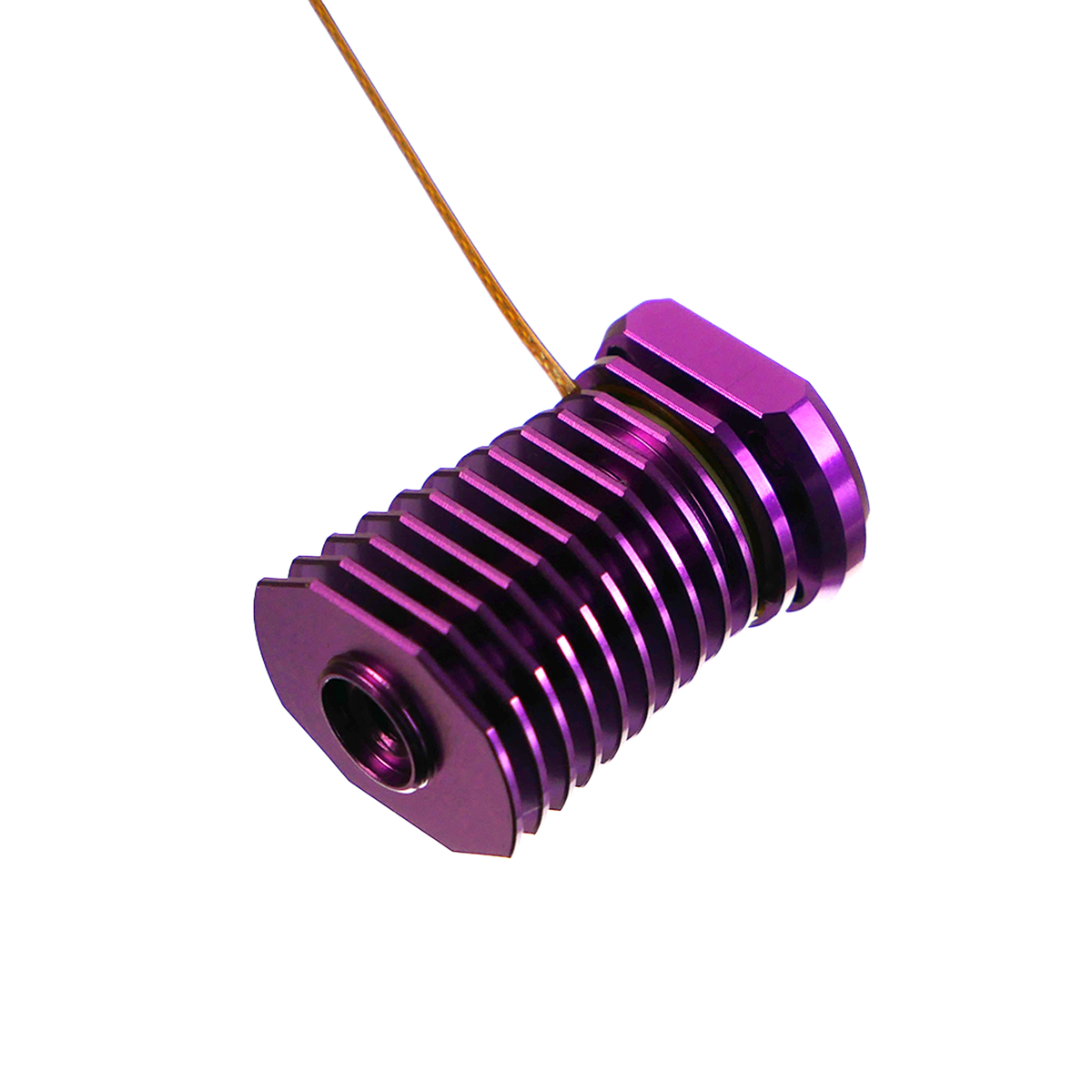

A Revo Voron heatsink with a piezo element built in, so the nozzle itself becomes the bed probe. No inductive sensor bolted to the side, no separate probe to align — same form factor as the Revo Voron coldside you already know, and it drops into a Stealthburner.

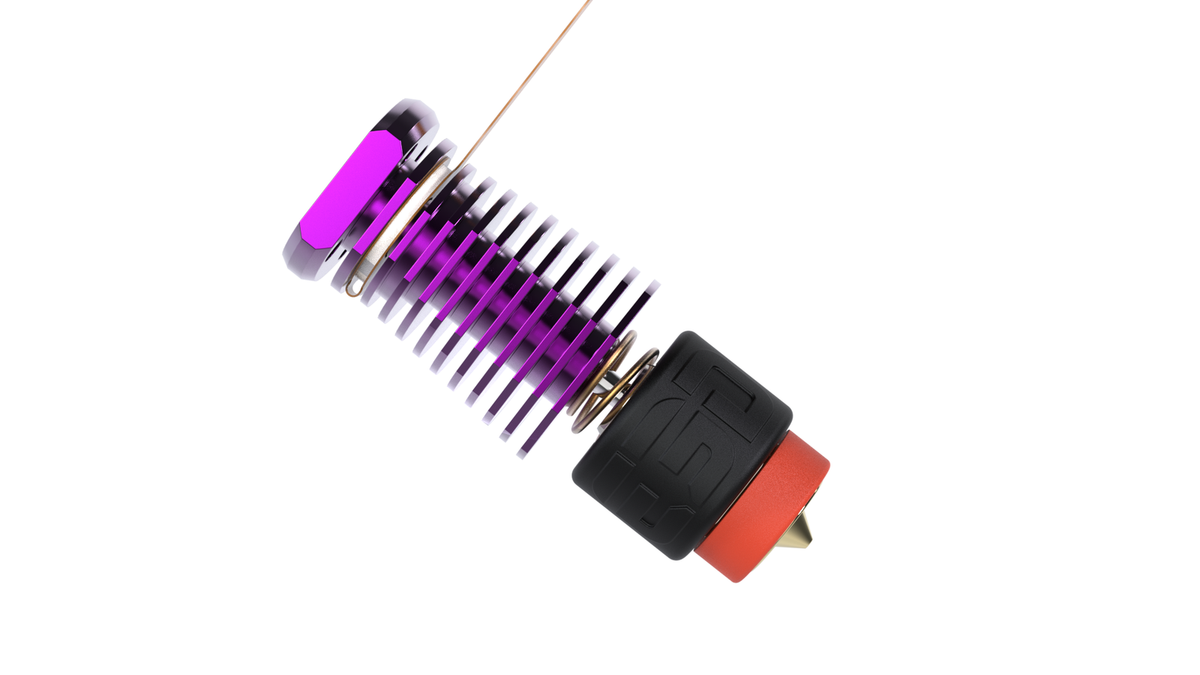

The piezo turns the vibration of nozzle touching bed into a signal. You calibrate the Z offset once for the flex in your motion system, and after that you screw in a new nozzle by hand and PZ Probe handles the rest. Probing with the nozzle rather than a sensor nearby also means the mesh is measured where it matters, which shows up in the first layer.

Weight, and why it matters

36 g for the heatsink with the piezo integrated — under 40 g including cables. That is lighter than any Stealthburner toolhead plus separate probe combination, which is exactly what you want on a Voron running high accelerations.

What you need

The only new part to add to an existing Stealthburner is a flat flex cable. Add a Revo hotside and nozzles and you're printing — see the Revo Hotside Kit for the heater and thermistor. Read E3D's technical datasheet before installing; the probe is not meant to be taken apart, and doing so voids the warranty.

In the box

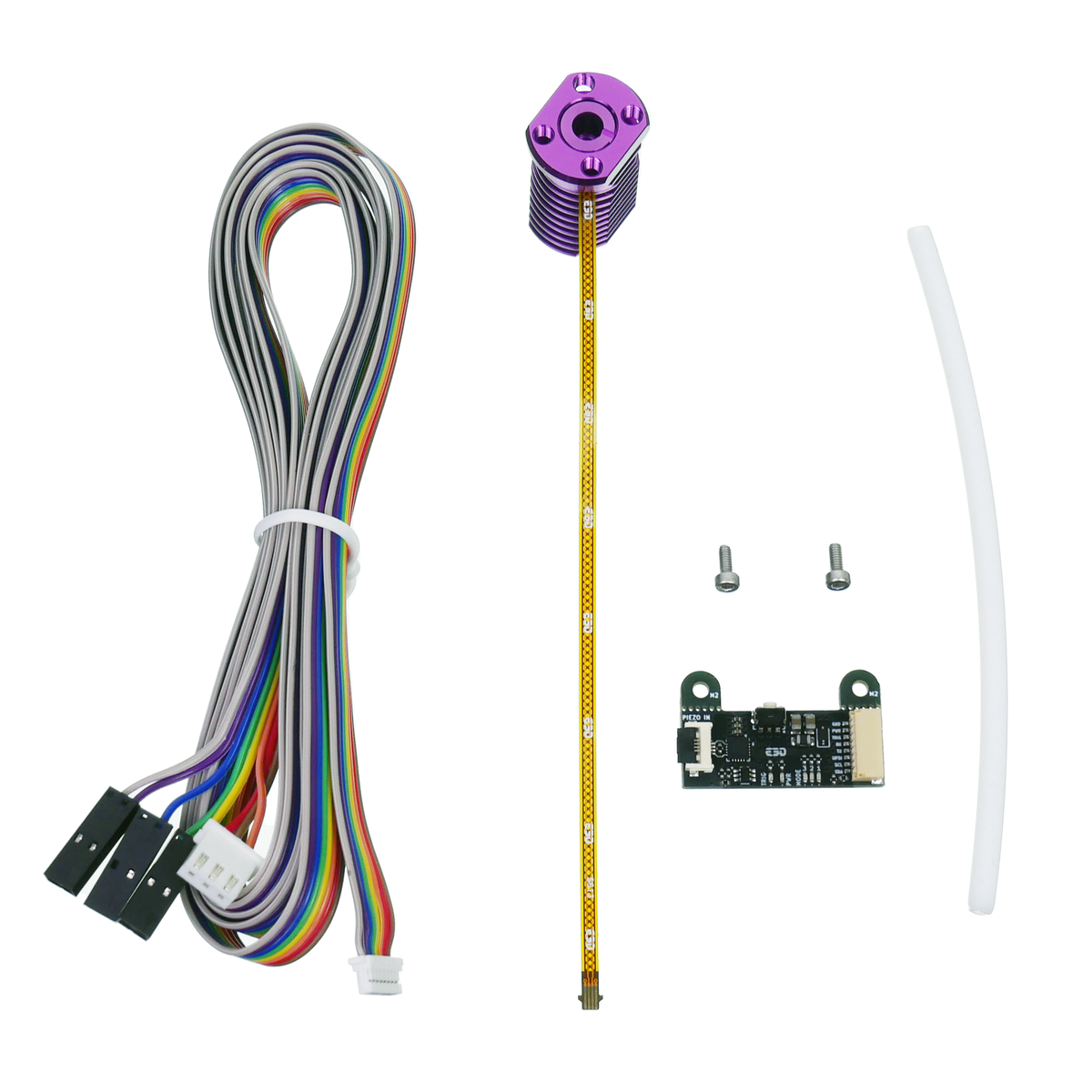

Revo Voron heatsink with integrated piezo, PZ Probe board, extension cables, two M2 board mounting screws, Bowden tubing. 1.75 mm filament, 60 °C maximum ambient. E3D part number PIEZO-VORON-COLD.
