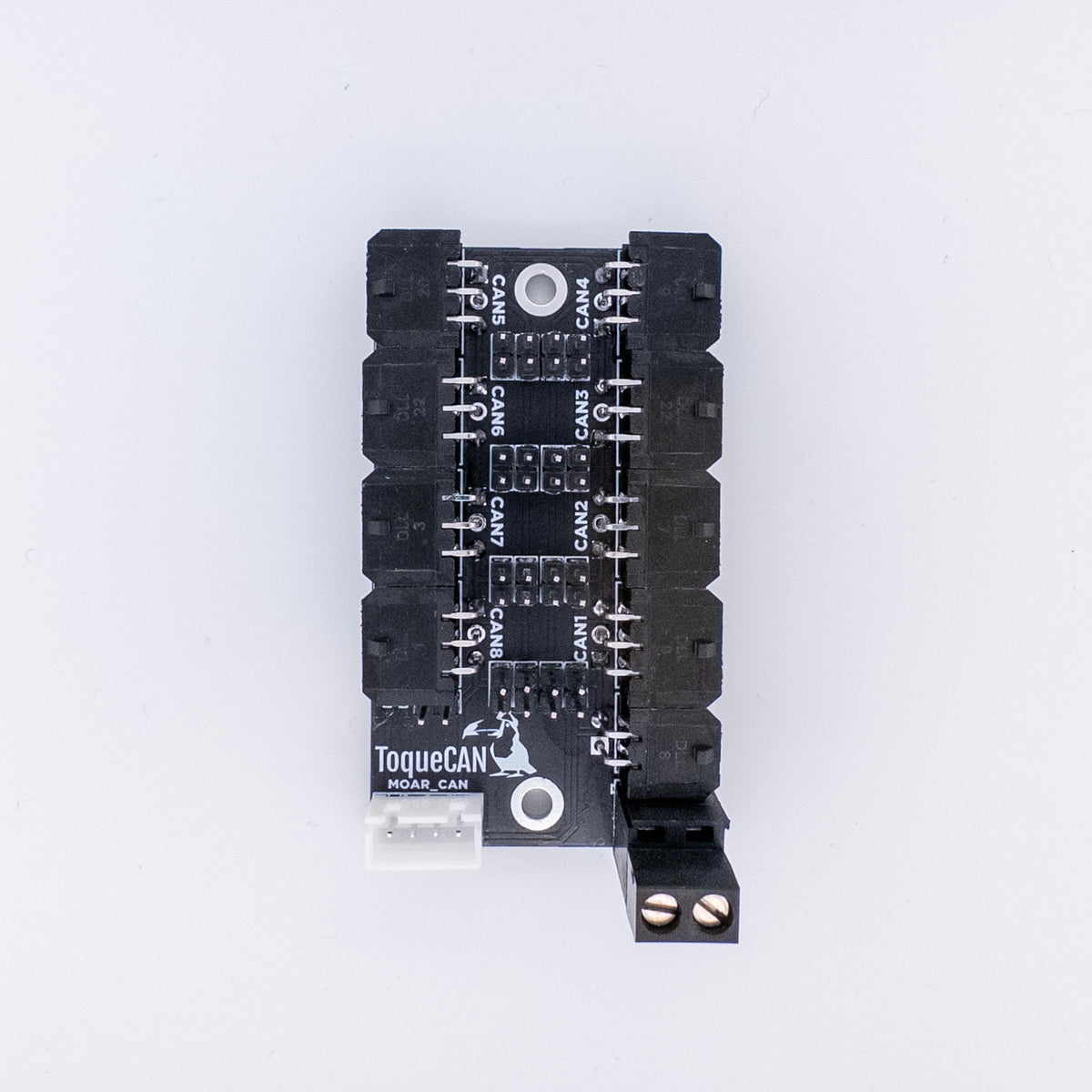

Isik's Tech MOAR_CAN 8/9 Port CAN Hub, Linear Bus Topology (Pre-Order)

Details

When a printer has more CAN devices than your adapter has ports (a toolchanger, an IDEX, a Box Turtle on the same bus), MOAR_CAN gives you the extra ports without turning the bus into a star. It keeps the linear topology that 1 Mbit CAN wants.

Specs

• 6-pin MX3.0 hub ports, plus a 4-pin MX3.0 aux/power port (10.5 A max)
• XH input from your USB/CAN adapter, power in through a screw terminal
• 24 A total, 10.5 A max per device, max stub length 300 mm
• 120 Ω termination jumper

Works with

ToqueCAN, PiCAN and other USB/CAN adapters. When you use it with a ToqueCAN, leave the MOAR_CAN termination jumper off. Jumpers, MX3.0 and XH connectors and pins are included.

Pre-order. I'm bringing this board in from Isik's Tech in the US. Expected to ship in 3–4 weeks. As soon as it lands in the Netherlands it goes out to you, and you pay no import fees or customs on top.

Designed and assembled by Isik's Tech. Docs: https://docs.isiks.tech/moar-can/manual/
