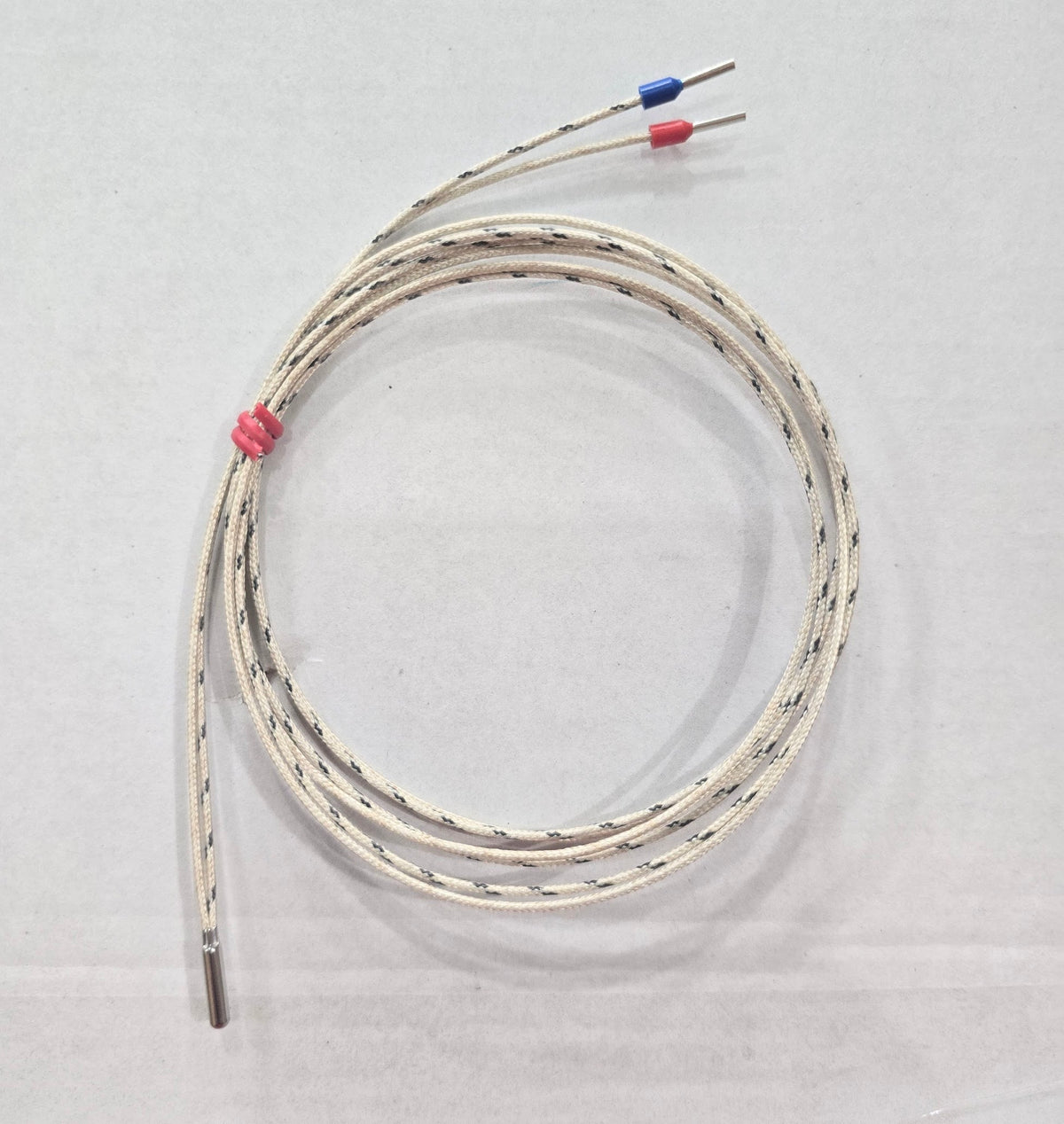

Luke's Lab High-Temperature PT1000 Sensor — 3 × 15 mm Cartridge, 500 °C

Details

Pre-order: first batch inbound from Luke's Laboratory, expected in the next few weeks. Ships from the Netherlands as soon as it lands.

A PT1000 in a 3 × 15 mm cartridge, rated to 500 °C — the sensor the Chube Compact ships with, and a direct swap for the thermistor in any hotend that takes a 3 mm cartridge sensor. Class A, so no calibration needed, and no polarity: either lead goes to either pin.

Fits

Chube Compact, Dragon, Dragonfly, Mosquito, E3D V6 and other hotends with a 3 mm sensor bore. Not for Revo or Bambu hotends.

Specs

• PT1000 RTD, class A
• 3 mm diameter, 15 mm long
• Rated to 500 °C
• 1 m fibreglass-insulated leads, ferrule terminated

In Klipper: sensor_type: PT1000. On boards without a dedicated PT1000 input, use the thermistor input with pullup_resistor set to your board's value (often 4700 or 2200). You're responsible for your own wiring and installation.
