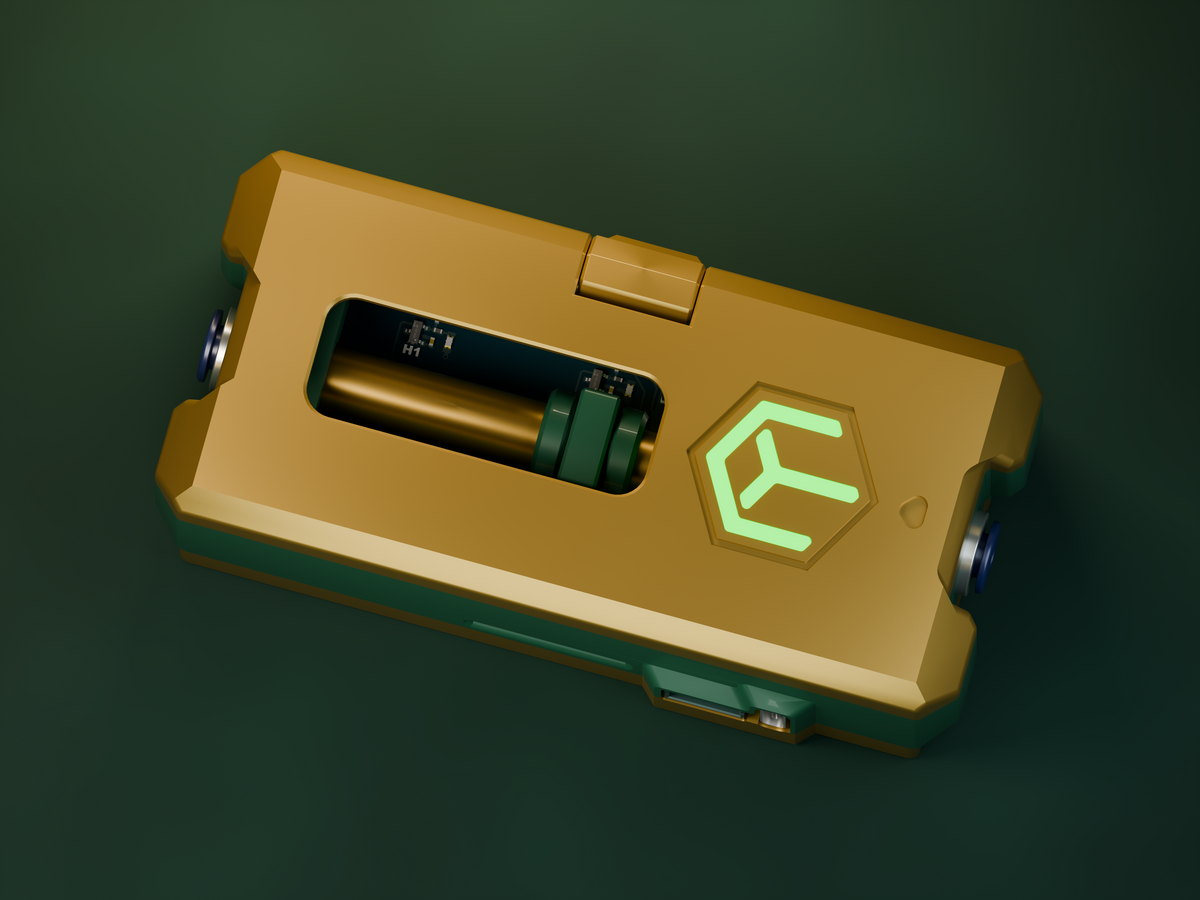

TES Turtle Neck 2 Remastered Filament Buffer with Onboard Klipper MCU (Pre-Order)

Details

The Turtle Neck 2, redone. Same footprint and mounting as the original TN2, but the electronics are completely redesigned: the Klipper MCU now sits on the buffer itself, so the wiring to your filament changer or autoloader gets a lot cleaner. The buffer position comes from a Compensator linear Hall sensor array instead of switches, which gives AFC a true linear position with known endpoints, no calibration needed.

What's on the board

• Onboard Klipper MCU, USB by default, optional 24 V power and CAN bus

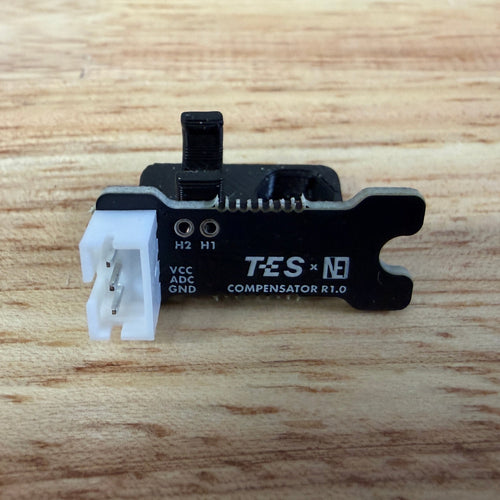

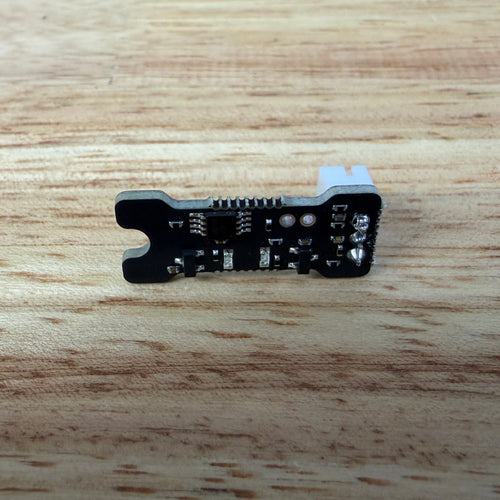

• Built-in Compensator linear buffer with dual raw Hall signals
• Runs up to 6 Compensator buffers from this one MCU
• 5 extra ADC/endstop-capable inputs
• NeoPixel/RGB addressable LED output
• Modular inlet for buffer-mounted filament hubs

In the bag

• 1× TN2R PCB
• 1× 6×3 mm N52 magnet
• 2× ECAS04 bowden collets
• 1× 0.8×12×30 mm compression spring
• 4× M3×5×4 heat-set inserts, 4× M3×8 SHCS, 2× M3×10 FHCS, 1× M2.5×10 FHCS
• 4× adhesive felt pieces

Good to know

• Printed parts are not included.
• This is a limited Remastered run, not a permanently stocked item.

Pre-order. I'm bringing this in from Pulsar3D in the US. They're waiting on their own batch, so I can't give a ship date yet. As soon as it lands in the Netherlands it goes out to you, and you pay no import fees or customs on top.

Designed by NEI and Tröndle Embedded Systems (TES). Assembly manual: TN2 Remastered manual
