DoomCube Corner Extrusion Kit — MISUMI 4040, Black, Voron 2.4

Details

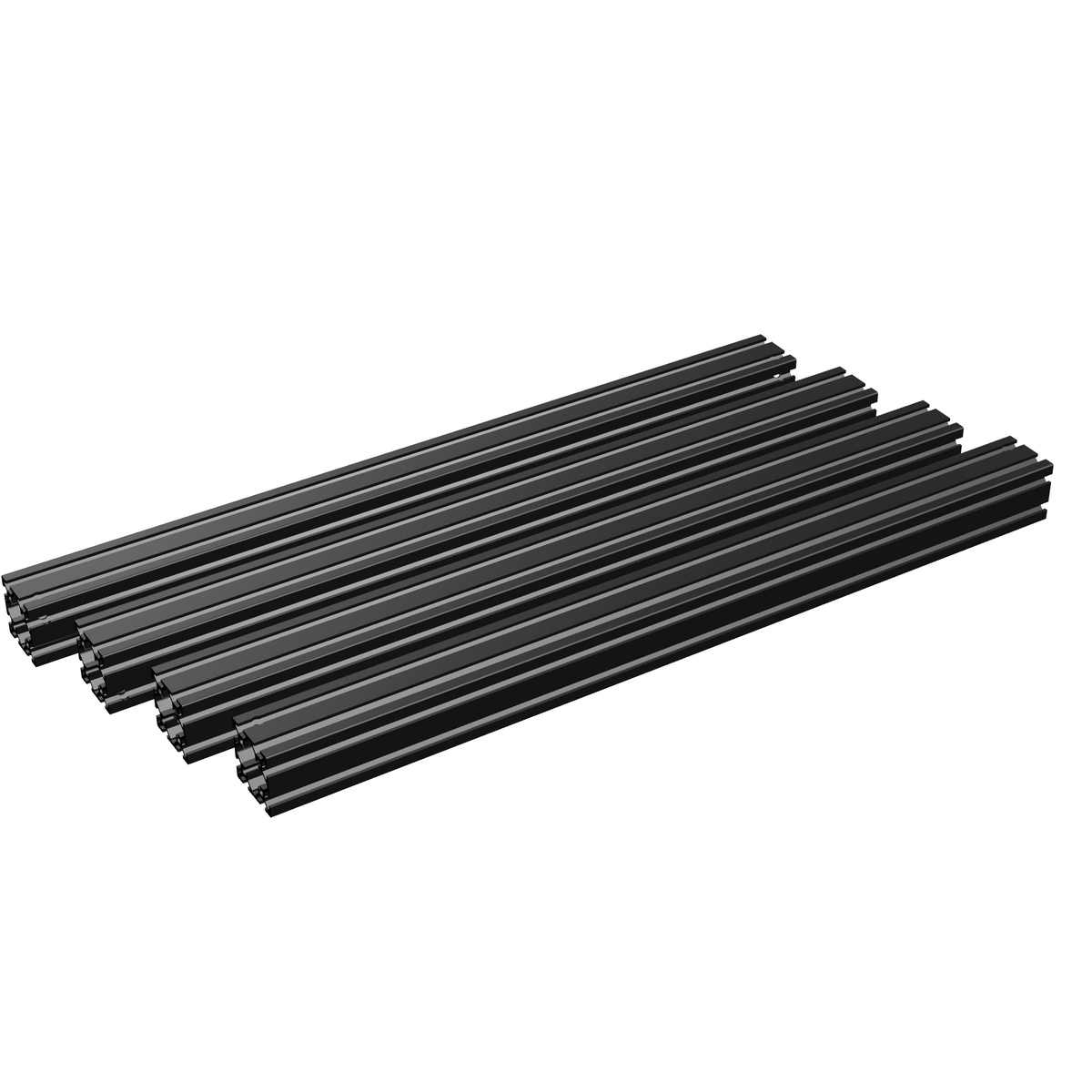

The four 4040 verticals that turn a Voron 2.4 frame into a DoomCube, ordered from MISUMI to the part numbers in the DoomCube-2 BOM. Pick your size and your corner style and I order the set for you.

DoomCube swaps the 2020 verticals for 4040 so the panels sit off the frame with an air gap for insulation, moves the Z drives to the top and puts the mains electronics at the bottom. This kit is the extrusion part of that: the rest of your 2.4 frame stays as it is.

Three corner styles, straight from the BOM

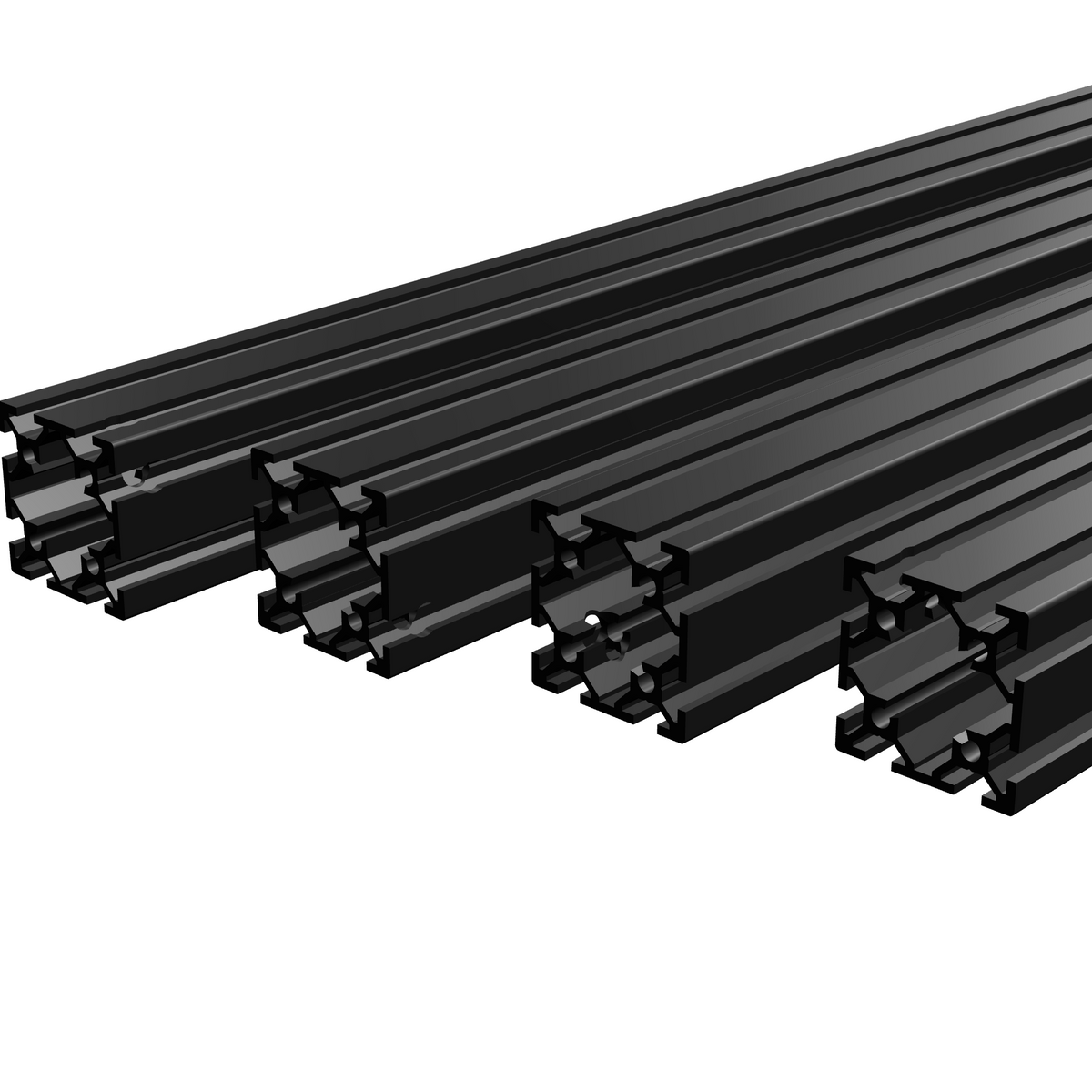

• Square, pre-drilled: MISUMI HFSB5-4040 with the LCP-RCP blind-joint counterbores machined by MISUMI. They replace your four 2020 verticals; no drilling at your bench.
• Square, DIY: the same HFSB5-4040 without machining, the BOM's DIY option. You drill the blind-joint holes yourself and save a fair bit.
• Rounded: MISUMI HFSR5-404020, the rounded-corner profile your existing 2020 verticals nest into. The 4040s need no machining; the 2020 verticals that nest into them need holes drilled, which you do yourself.

What's in the box

Black anodised. Blind-joint screws are not included. The new Z idlers and relocated endstop mounts DoomCube needs are printed parts from the DoomCube-2 repository.

Lead time and shipping

MISUMI cuts and machines 4040 to order and quotes about two weeks for it, so count on two to three weeks before your set ships from the Netherlands. Slower than my printed parts, but it is the real part with the real machining. I'll mail you when it is on its way.

Four 4040 bars weigh about 3 kg, so this kit ships as a PostNL parcel charged by weight at checkout; the free-shipping rule for my printed parts does not cover it.

Building the doors too? The DoomCube Door Extrusions + Hinges kit is cut from the same BOM. Need other MISUMI lengths, profiles or parts for your build? Mail me at pjotr3dshop@gmail.com with the part numbers and I'll quote your order.

Design: DoomCube-2 by FrankenVoron and the Voron community, published under GPLv3 at github.com/FrankenVoron/DoomCube-2. Extrusion by MISUMI. I source, check and pack the set; the design is theirs.
